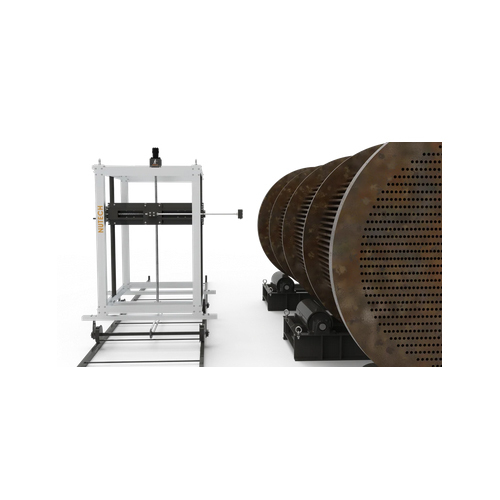

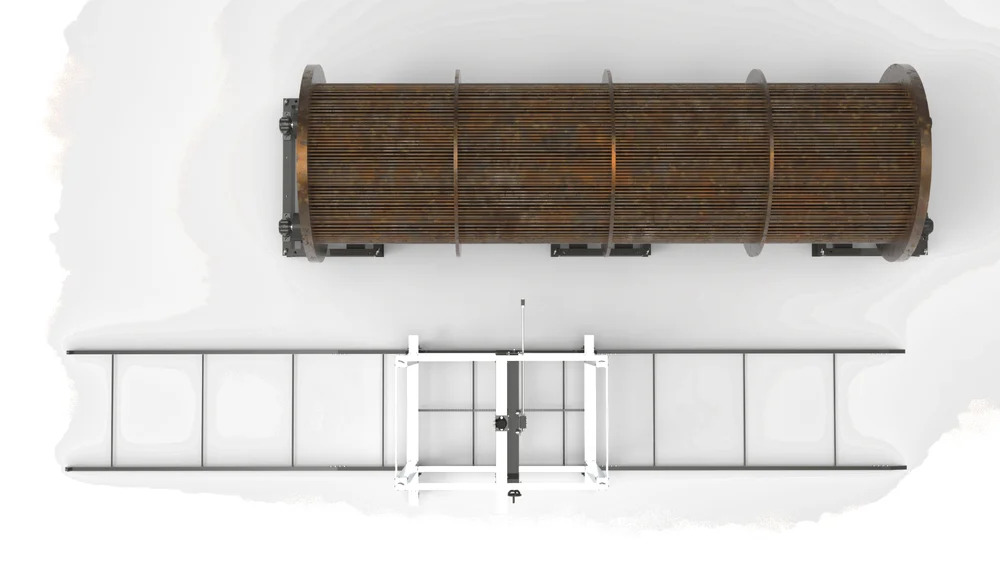

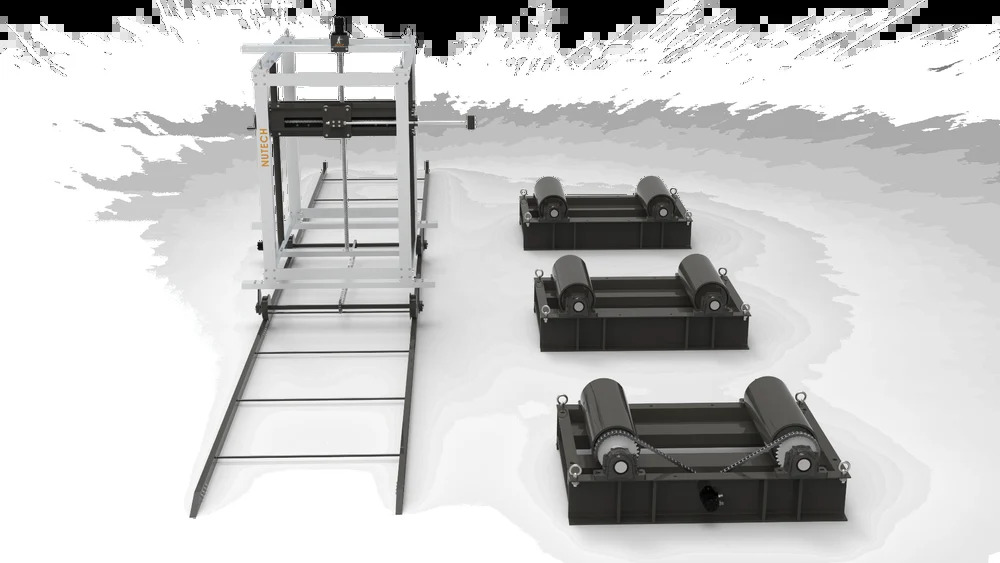

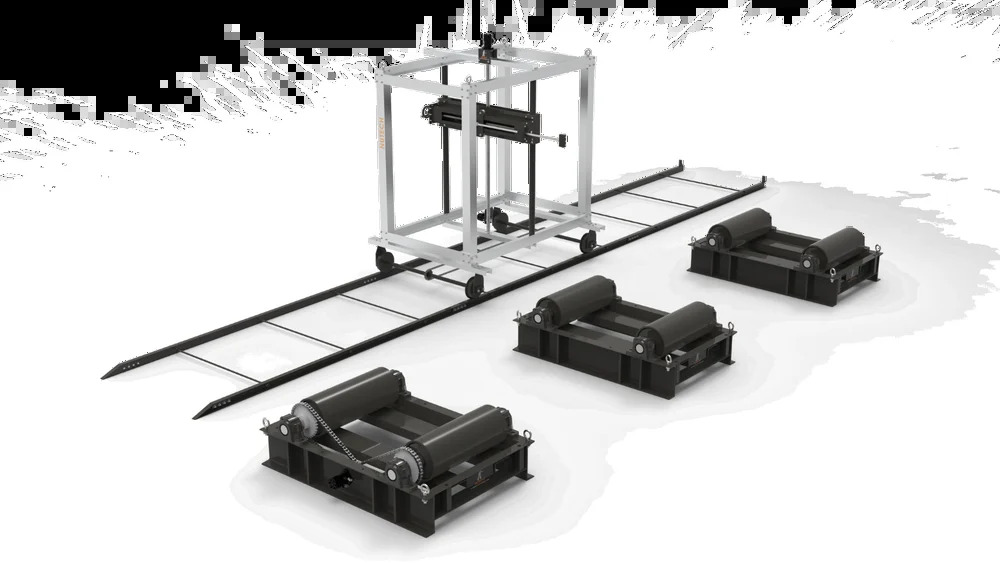

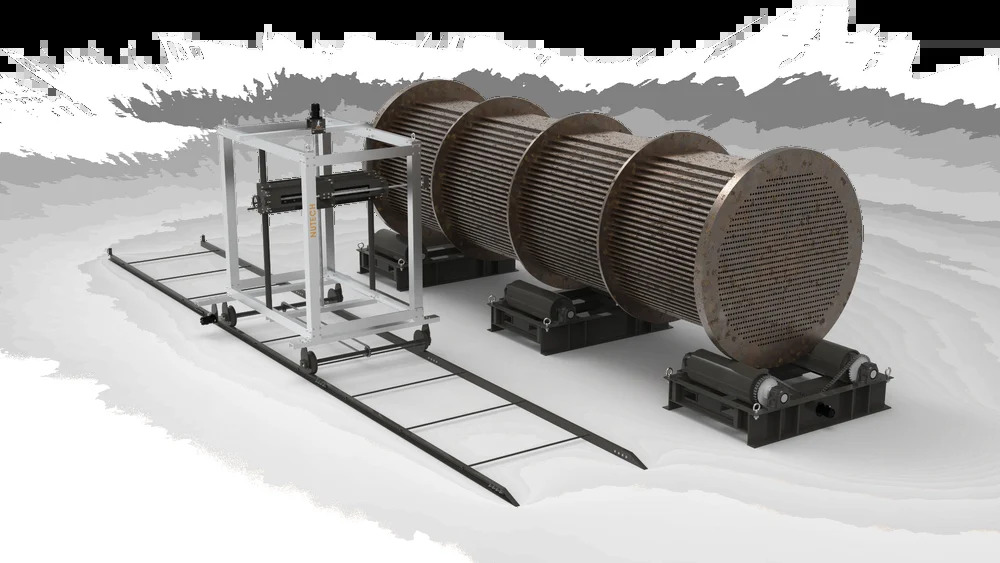

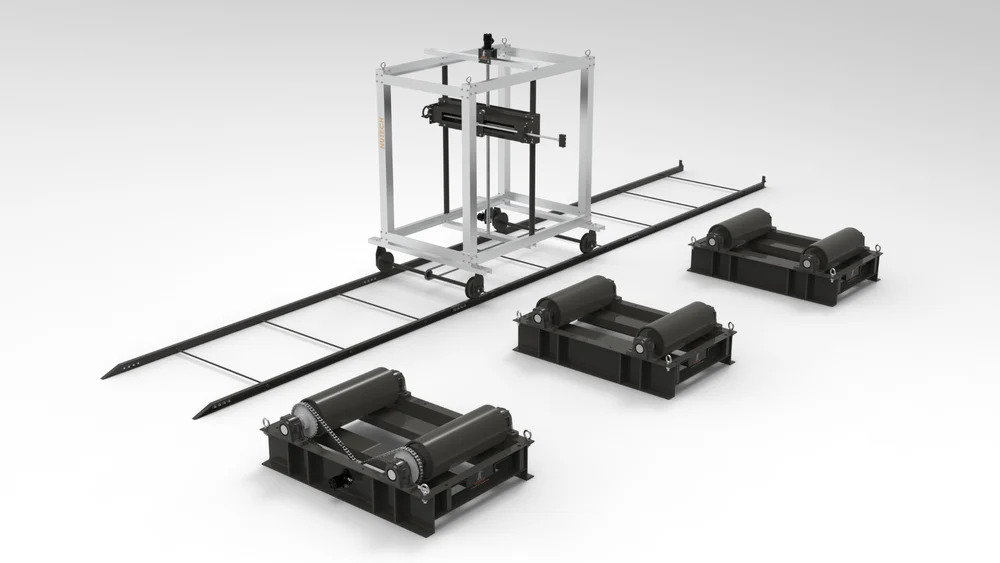

Three Phase Nutech OD Cleaning System - ODEX ALPHA, 10 HP

Product Description

The ODEX Alpha is an innovative, automated external cleaning system designed for heat exchanger and tube bundles. Engineered for ease of use, safety, and cost-efficiency, this system is the perfect solution for contractors and industrial plants seeking a low-maintenance alternative to traditional handheld cleaning methods.

 Features

• Powerful Cleaning: Capable of generating up to 20,000 psi (1400 bar) of pressure and a flow rate of up to 95 lpm (25 gpm), ensuring thorough cleaning of various heat exchanger sizes.
• Modular Design: The ODEX Alpha features a standard rail length of 39 ft (12m), accommodating almost all bundle sizes. The entire assembly is modular, allowing for easy transportation and storage.
• Three-Axis Movement: The system offers X, Y, and Z axis movements, enabling optimal jet stand-off for different tube bundle sizes and ensuring maximum cleaning coverage.
• Adjustable Rollers: Equipped with adjustable rollers that accommodate tube bundles up to 2m in diameter, providing enhanced support and control during operation.
• Hydraulic Power: The ODEX Alpha operates on a hydraulic power supply, offering reliable and consistent performance even under the most demanding conditions.
• Efficient and Safe: This system is safer and more efficient compared to traditional methods and is significantly more affordable than truck-mounted systems.

 Technical Specifications:

• Pressure Range: Up to 20,000 psi (1400 bar)
• Flow Range: Up to 95 lpm (25 gpm)
• Linear Speed: X-axis: 8-49 m/min, Y-axis: 7-40 inch/min
• Power Supply: Hydraulic
• Rail Length: 39 ft (12m)
• Load Capacity: Available in models with 15 Ton, 25 Ton, and 35 Ton load capacities

 Applications: Ideal for external cleaning of heat exchangers and tube bundles in industrial plants, ensuring efficient maintenance and prolonged equipment life.
